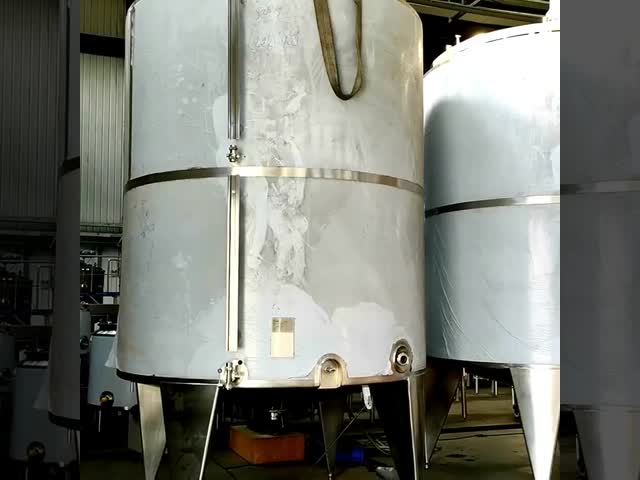

Ladder with circle protection outdoor stainless steel wine tanks with cleaning system for factory
On the premise of fully mixing the reactants, the stirring device is required for the heating, cooling, liquid extraction, gas absorption and other physical change processes to achieve good results, and the external coil reactor can be designed and processed for customers.
Usage: Applicable for large milk collection center, or for milk outdoor storage at large milk production plant; also used at other food and pharmacy factory for storage of liquid product.
This equipment is equipped with cleaning system, agitator, sight and view devices, also have attachments of thermometer and level indication meter.
Specifications:
Material: all material used is high quality sus304-2B stainless steel or SUS 316, inner shell δ=3-4mm and out shell δ=2mm and cooling jacket δ=1.5mm;
Structure: cylindrical shape, conical top cover of 15 degree, with skirt base; with PU(Polyurethane) as heat insulation; with cooling dimple pad at tank wall and base.
Volume range: 15,000L-120,000L
Standard attachments
a). One air tight side manhole;
b). One side mounted agitator at the bottom;
c). One PT100 thermometer, temperature range 0~100℃
d). Two CIP cleaning balls;
e). One aseptic sample valve;
f). Anti butterfly and dirt air vent;
g). Product inlet/outlet
h). Cooling medium inlet/outlet;
i). Level sensor;
j). Ladder with circle protection and protection fence at tank top
Technical parameter:
| Model | Effective volume(L) | External diameter(mm) | Total height(mm) | Heat insulation layer(mm) | Diameter of inlet/outlet | Motor Power (kw) | Side agitator speed(rpm) |
| BYCG-15 | 15000 | 2200 | 6500 | 100 | φ51 | 5.5 | 960rpm |
| BYCG-20 | 20000 | 2380 | 7150 | 100 | φ51 | 5.5 | 960rpm |
| BYCG-30 | 30000 | 2700 | 7850 | 100 | φ51 | 5.5 | 960rpm |
| BYCG-50 | 50000 | 3200 | 9200 | 100 | φ51 | 5.5 | 960rpm |
| BYCG-60 | 60000 | 3400 | 9800 | 100 | φ51 | 5.5 | 960rpm |
| BYCG-100 | 100000 | 3620 | 12990 | 100 | φ51 | 5.5×2 | 960rpm |
| BYCG-120 | 120000 | 3700 | 14200 | 100 | φ51 | 5.5×2 | 960rpm |
Other volumes not specified, we could customize as to customers’ requirement.
And we will recommend manufacturing on site for the volumes that more than 120T.
FAQ:
1 ) Q: How can we visit your factory?
A: If you come from abroad, air to shanghai airport, then we can pick you up at airport.
2) Q: How do you ensure the quality of your products?
A: Our Company is a state owned enterprise with more than 16 years experience , strict operation policy is performed, advanced processing machines guarangtee the precision of all components, workers with operation license, parts get multiprocessing, transmission& electrical parts are of international famous brand. Series of test and inspection are done in the whole producing state.
3) Q: What payment methods your company accept?
A: We accept most of the payment methods , but mainly accept T/T, L/C at sight .
4) Q: How long is the warranty time for your products?
A: Our officially promised warranty time is 12 months after commissioning .
5) Q: I am new in this field,can you supply us turnkey services?
A: YES.We can supply all the system including Market Analysis/Product Analysis/Location Choice/Processing Flow Design/Equipment Layout Design/Building Design direction/Equipment mode selection/Equipment Manufacturing/Equipment Mounting/Equipment Debugging/Worker Training.
6) Q: What ' s the shipment terms and delivery time of your company?
A: Well, the delivery time depend on the quantity of your order. Usually is 20 days . For some customized machine 30 days is necessary.
7) Q: Can you supply OEM services?
A: Yes,we have our R&D team,and we have more than 400 workers with workshop area 75000 square meters.
8) Q: Do you give any Discount?
A: I will surely try my best to help you get those by the best price and good service at the same time.
